Dual-Beam
Independently controlled core and ring beams across 7 water-cooled fiber lasers — six for precision metal welding, one purpose-built for non-contact industrial cleaning.
Dual Beam Industrial Fiber Lasers
The Dual Beam Series covers Maxphotonics' core/ring fiber lasers, where two concentric beams — a small, high-intensity core and a larger, lower-intensity ring — combine from a single head. Six MFMC Multi Module models (MFMC 1000/1000M through MFMC 5000/3000M) are built for precision metal welding, including EV battery drive unit welding, battery tab welding, and battery FTT anode welding, with combined core+ring output ranging from 2kW to 8kW: three run an even core/ring split, and three run a biased split weighted toward either the core or the ring. The seventh model, the DBC 1000/6000, is Dual Beam's only cleaning-focused unit, pairing a 1000W core with a 6000W ring for non-contact industrial surface cleaning.
Every model runs on water cooling, connects into production lines over Digital I/O or ProfiNET, and ships CE certified with a 2-year standard warranty. The six MFMC welding models run in CW mode only and share a 550×1140×760mm chassis; the DBC 1000/6000 runs in CW or Pulsed mode and uses its own dedicated chassis.
Every Dual Beam model pairs a small, high-intensity core beam with a larger, lower-intensity ring beam from a single head — the core delivers focused penetration, the ring spreads heat around it, reducing spatter and porosity versus a single-beam laser at the same power.

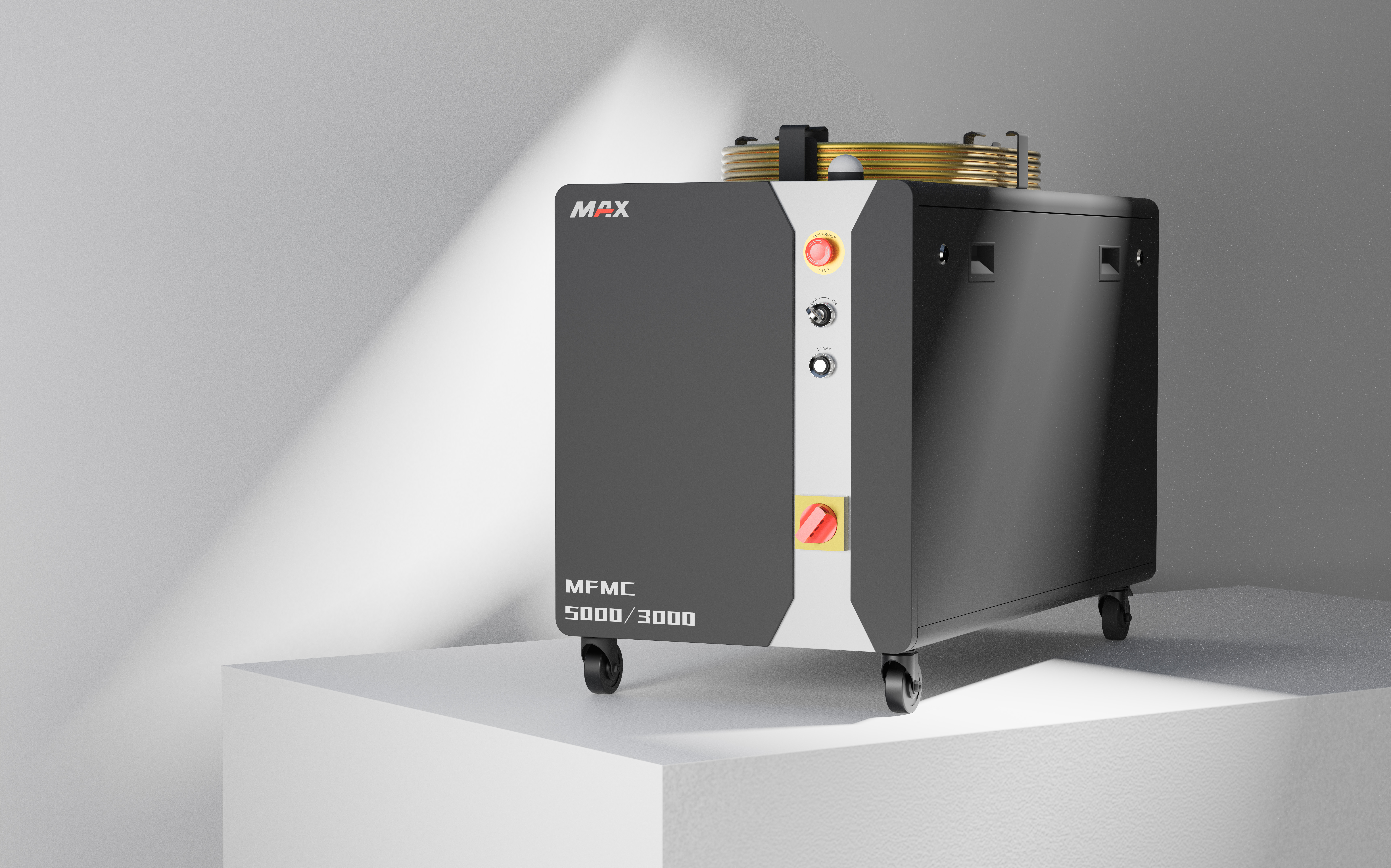

From the MFMC 1000/1000M's 2kW combined core+ring output up to the MFMC 5000/3000M's 8kW, the welding lineup covers EV battery welding at every scale, with even-split and biased-split models available at the same total power.
The six MFMC models are built for precision metal welding — including EV battery drive unit welding, battery tab welding, and battery FTT anode welding — where minimal spatter and controlled heat input matter most.

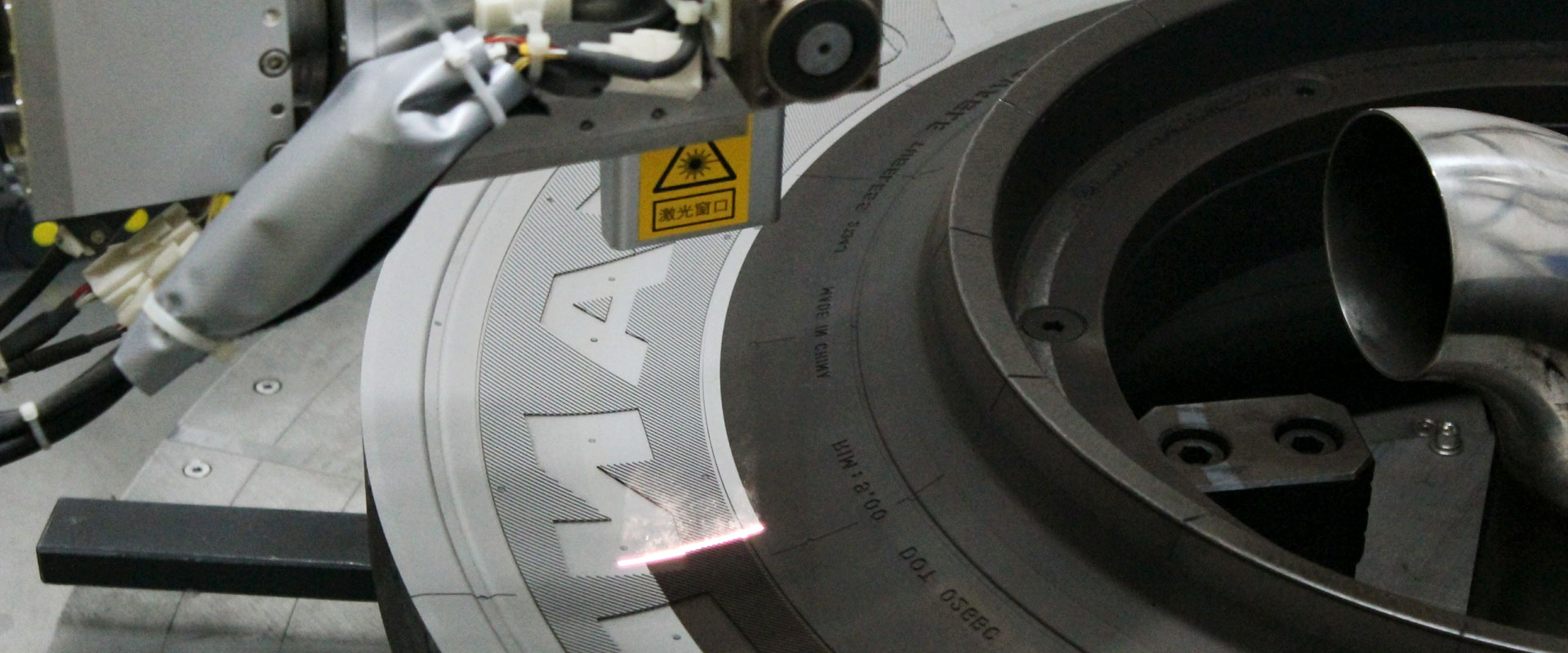

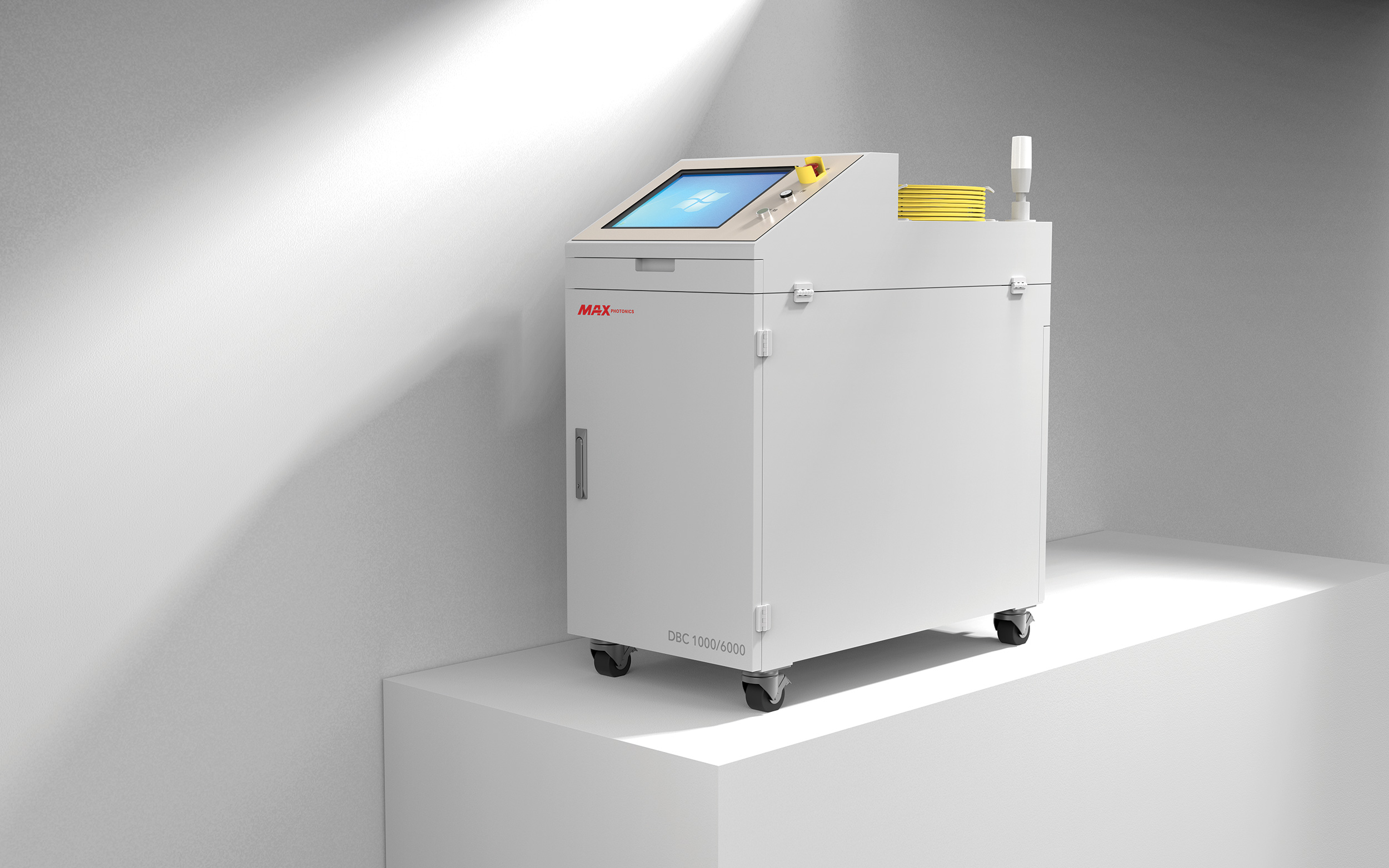

The DBC 1000/6000 is Dual Beam's only cleaning-focused unit, running CW or Pulsed mode for non-contact industrial surface cleaning — including mold cleaning, tire cleaning, and blue film cleaning — rather than welding.
Every Dual Beam model runs on water cooling and connects into automated production lines over Digital I/O or ProfiNET, for straightforward integration into existing welding or cleaning cells.

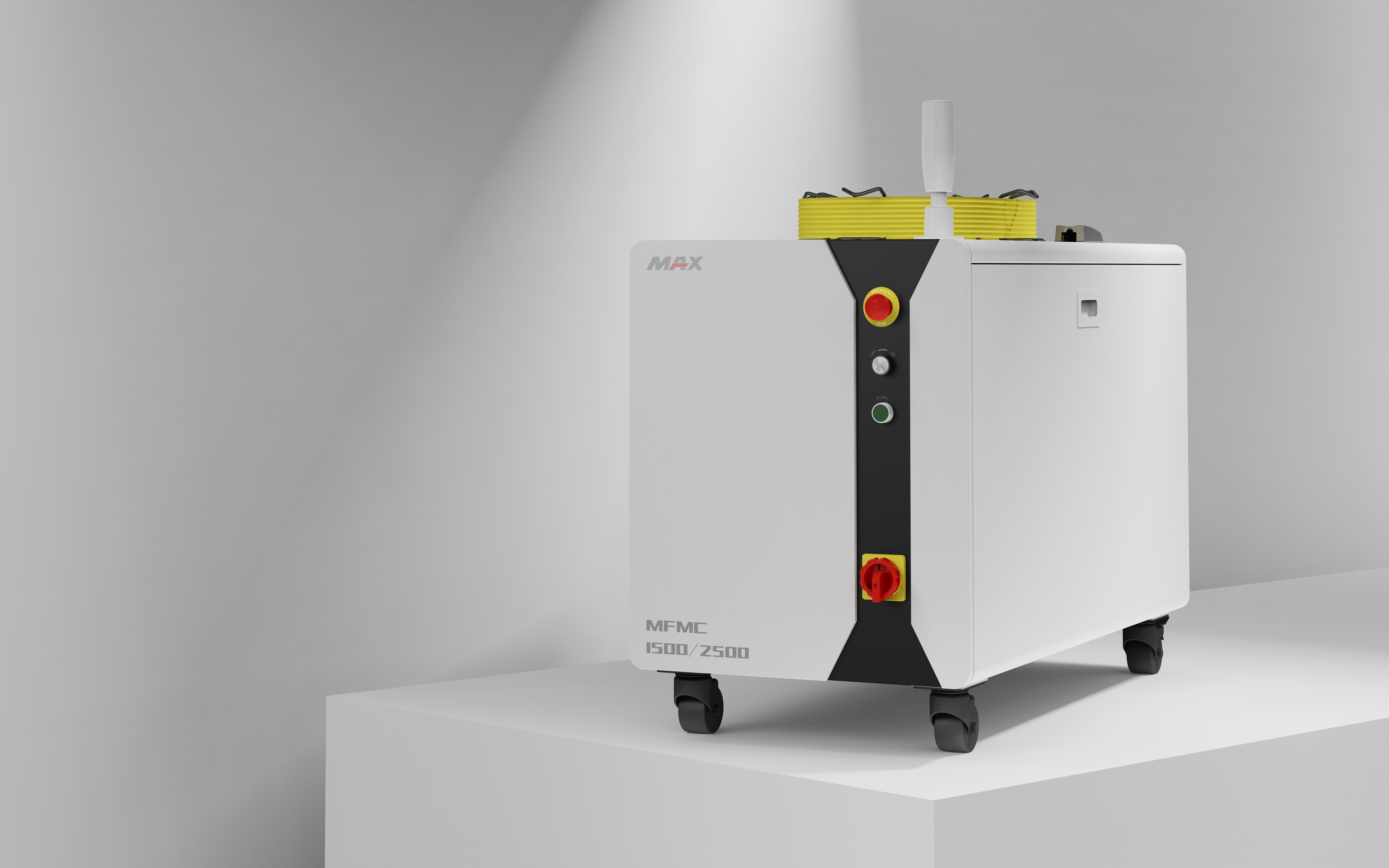

At 4kW combined output, choose an even split (MFMC 2000/2000M) or a ring-biased split (MFMC 1500/2500M); at 6kW, choose even (MFMC 3000/3000M) or core-biased (MFMC 4000/2000M) — the same total power, matched to different weld profiles.
Product Range
Product Comparison
Select products from the dropdown options below to compare parameters and find your perfect laser.
| Product type | |
| Series | |
| Nominal power | |
| Module | |
| Polarization | |
| Power Redundancy | |
| Power Tunability | |
| Wavelength | |
| Power Stability | |
| Modulation Frequency | |
| Pulse Energy (mJ) | |
| Repetition Rate (kHz) | |
| Fiber Connectors | |
| Certifications and Safety | |
| Cooling Method | |
| Housing form | |
| Warranty | |
